4.20.3 Creating an External Application using KDevelop

Written by Andreas Busch, nobita@t-online.de. Last updated 1 April 2004.

This HOWTO is a step by step guide for creating a Crystal Space application using KDevelop as your integrated development environment outside the Crystal Space source tree.

KDevelop External Step 1

Open KDevelop and click on New from the Project menu. The KDevelop Application Wizard offers you special settings for the creation of dedicated GNOME or KDE/Qt applications, but the selection Terminal-C++ is usually sufficient for creating a new Crystal Space project (i.e. using OpenGL).

usingcs/ownprojects/kdevproj/snap0

KDevelop External Step 2

In the Generate settings dialog enter the Project name as well as the Project directory for your project files outside the Crystal Space tree. When you mark the checkbox generate sources and headers the Hello World `main.cpp' and `main.h' files are generated which can be used if you want to start from scratch. If you want to import source files to start with, leave it unchecked. The GNU-Standard-Files option copies the General Public License file `COPYING' a dummy `README' and `INSTALL' file into the project tree.

usingcs/ownprojects/kdevproj/snap1

Click Next and you will next be confronted with another dialog box.

KDevelop External Step 3

If you want Version Control Support you can select SVN now and fill the required fields according to your SVN environment, otherwise leave it set to NONE.

The Next two pages are header templates for header `.h' and source `.cpp' files. Click Next when you're done here.

usingcs/ownprojects/kdevproj/snap2

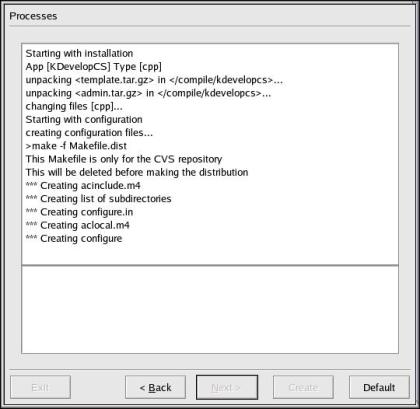

Now an almost empty window appears and you should click on Create to run an automake. After that you can click on Exit and do the relevant parts for using KDevelop with Crystal Space.

KDevelop External Step 4

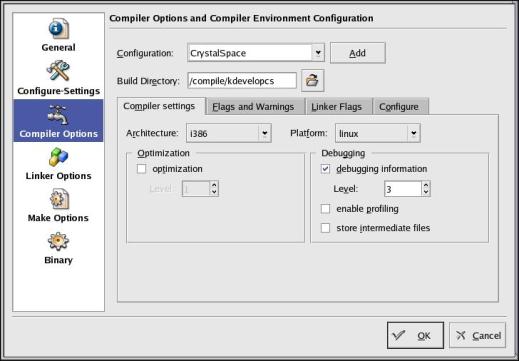

Click on Options in the Project menu and select Compiler Options. Add a new Configuration and call it CrystalSpace, then make sure to set the path back to the correct Build Directoy.

usingcs/ownprojects/kdevproj/snap3

KDevelop External Step 5

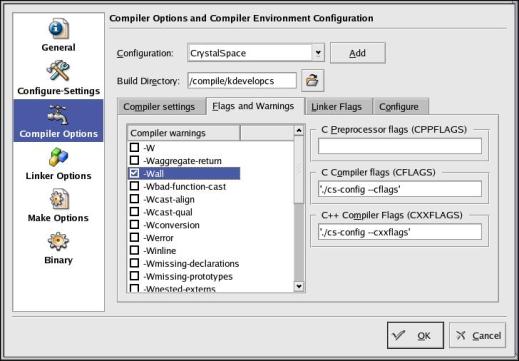

When you installed Crystal Space, the script `cs-config' should have been placed in the `bin/' installation directory, and this directory should be mentioned by your `PATH' environment variable,so that you can invoke `cs-config' as you would any other program simply by typing its name. If you did not install Crystal Space, then you may want to copy `cs-config' into the top directory of your new project, or alter your `PATH' variable so that it points at the directory containing `cs-config' (the Crystal Space build directory, for instance). In the examples below which invoke `cs-config', be sure to include the backticks in the fields CFLAGS and CXXFLAGS in the Flags and Warnings tab for the `cs-config' script to be executed properly, otherwise you will get an error message that your C-compiler cannot create executables. The CFLAGS field should contain ``./cs-config --cflags`', and CXXFLAGS should contain ``./cs-config --cxxflags`'.

usingcs/ownprojects/kdevproj/snap4

KDevelop External Step 6

The same applies to the field Additional flags in the Linker Flags tab. After ``cs-config --libs`' you may add the Crystal Space primary library `crystalspace'; thus, the entire content of the Additional flags field might be ``./cs-config --libs crystalspace`'.

usingcs/ownprojects/kdevproj/snap5

KDevelop External Step 7

Now over to the Linker Options. Include your additional libraries here as needed. Many platforms will require `-lpthread' in this field.

usingcs/ownprojects/kdevproj/snap6

KDevelop External Step 8

In the Make Options dialog you need to set the include directory for Crystal Space. Don't forget the backticks for automatic execution upon build. The additional options field should contain -I`./cs-config --includedir`.

usingcs/ownprojects/kdevproj/snap7

Click on OK and the configure will re-run.

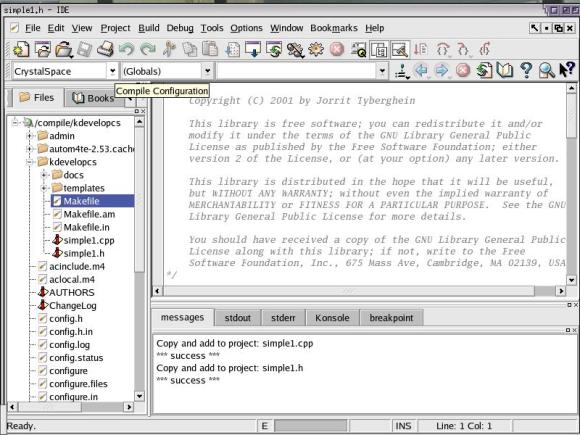

In the Compile Configuration you can now change from (Default) to CrystalSpace to set your compiler options. If you want to compile for different target platforms or optimized processor-types you can invoke Configure in the Build menu with different arguments. For example, `--host=i686-linux --build=i686-linux --target=i686-linux', instead of the `i386-linux' default in KDevelop. Of course, you can choose other platforms as well.

usingcs/ownprojects/kdevproj/snap8

KDevelop External Step 9

In the Project menu you can now Add existing File(s) to your project. Select the `simple1.cpp' and `simple1.h' files from the Crystal Space code tree and add them to your project destination directory. You may want to uncheck the insert templates box to keep the files unmodified.

These files can be found within the Crystal Space source code tree at the following location:

`CS/apps/tutorial/simple1'

Alternately, you can type in your own Crystal Space program, but for the sake of this tutorial, using the existing `simple1' application is easier.

The resulting KDevelop project session file `kdevelopcs.kdevses' will look like this. (You do not need to edit this file by hand; it is shown here for illustrative purposes only.)


<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE KDevPrjSession>
<KDevPrjSession>
 <CompileConfigs>
  <CrystalSpace>
   <Architecture>i386</Architecture>
   <Platform>linux</Platform>
   <VPATHSubdir>/compile/kdevelopcs</VPATHSubdir>
   <CFLAGS>`./cs-config --cflags`</CFLAGS>
   <CPPFLAGS></CPPFLAGS>
   <CXXFLAGS>-O0 -g3 -Wall</CXXFLAGS>
   <AdditCXXFLAGS>`./cs-config --cxxflags`</AdditCXXFLAGS>
   <LDFLAGS>`./cs-config --libs crystalspace`</LDFLAGS>
   <ConfigureArgs>--build=i386-linux --host=i386-linux \
    --target=i386-linux</ConfigureArgs>
  </CrystalSpace>
 </CompileConfigs>
 <LastCompileConfig>CrystalSpace</LastCompileConfig>
 <Mainframe MaximizeMode="1" />
 <DocsAndViews NumberOfDocuments="1" >
  <Doc0 CursorPosLine="0" Type="KWriteDoc" NumberOfViews="1" \
   CursorPosCol="0" FileName="/compile/kdevelopcs/kdevelopcs/main.cpp" >
   <View0 Top="0" Width="406" Attach="1" Height="328" Left="0" \
    Focus="1" Type="KWriteView" MinMaxMode="2" />
  </Doc0>
 </DocsAndViews>
</KDevPrjSession>

The following is the content of the KDevelop project file `kdevelopcs.kdevprj'. (Keep in mind that this file is created and updated automatically by KDevelop, so you do not need to manually change this file either.)


[AUTHORS]
dist=true
install=false
install_location=
type=DATA

[COPYING]
dist=true
install=false
install_location=
type=DATA

[ChangeLog]
dist=true
install=false
install_location=
type=DATA

[Config for BinMakefileAm]
bin_program=kdevelopcs
cxxflags=-O0 -g3 -Wall
ldadd=-lpthread
ldflags=

[General]
AMChanged=false
author=Some Body
configure_args=
email=some.body@some.where
execute_args=-video=opengl
kdevprj_version=1.3
lfv_open_groups=
make_options=-j1 -I/usr/local/include/crystalspace
makefiles=Makefile.am,kdevelopcs/Makefile.am, \
kdevelopcs/docs/Makefile.am,kdevelopcs/docs/en/Makefile.am
modifyMakefiles=true
project_name=KDevelopCS
project_type=normal_cpp
sgml_file=/compile/kdevelopcs/kdevelopcs/docs/en/index.sgml
short_info=
sub_dir=kdevelopcs/
version=0.1
version_control=None

[INSTALL]
dist=true
install=false
install_location=
type=DATA

[LFV Groups]
GNU=AUTHORS,COPYING,ChangeLog,INSTALL,README,TODO,NEWS
Headers=*.h,*.hh,*.hxx,*.hpp,*.H
Others=*
Sources=*.cpp,*.c,*.cc,*.C,*.cxx,*.ec,*.ecpp,*.lxx,*.l++,*.ll,*.l
groups=Headers,Sources,GNU,Others

[Makefile.am]
files=kdevelopcs.kdevprj,admin,AUTHORS,COPYING,ChangeLog, \
INSTALL,README,TODO,kdevelopcs.lsm
sub_dirs=kdevelopcs
type=normal

[README]
dist=true
install=false
install_location=
type=DATA

[TODO]
dist=true
install=false
install_location=
type=DATA

[admin]
dist=true
install=false
install_location=
type=DATA

[kdevelopcs.kdevprj]
dist=true
install=false
install_location=
type=DATA

[kdevelopcs.lsm]
dist=true
install=false
install_location=
type=DATA

[kdevelopcs/Makefile.am]
files=kdevelopcs/simple1.cpp,kdevelopcs/simple1.h
sub_dirs=docs
type=prog_main

[kdevelopcs/docs/Makefile.am]
sub_dirs=en
type=normal

[kdevelopcs/docs/en/Makefile.am]
files=kdevelopcs/docs/en/index.html,kdevelopcs/docs/en/index-1.html, \
 kdevelopcs/docs/en/index-2.html,kdevelopcs/docs/en/index-3.html, \
 kdevelopcs/docs/en/index-4.html,kdevelopcs/docs/en/index-5.html, \
 kdevelopcs/docs/en/index-6.html
sub_dirs=
type=normal

[kdevelopcs/docs/en/index-1.html]
dist=true
install=false
install_location=
type=DATA

[kdevelopcs/docs/en/index-2.html]
dist=true
install=false
install_location=
type=DATA

[kdevelopcs/docs/en/index-3.html]
dist=true
install=false
install_location=
type=DATA

[kdevelopcs/docs/en/index-4.html]
dist=true
install=false
install_location=
type=DATA

[kdevelopcs/docs/en/index-5.html]
dist=true
install=false
install_location=
type=DATA

[kdevelopcs/docs/en/index-6.html]
dist=true
install=false
install_location=
type=DATA

[kdevelopcs/docs/en/index.html]
dist=true
install=false
install_location=
type=DATA

[kdevelopcs/simple1.cpp]
dist=true
install=false
install_location=
type=SOURCE

[kdevelopcs/simple1.h]
dist=true
install=false
install_location=
type=HEADER

That is all there is to it. Select Make from the Build menu, see your application correctly building, and do a test launch with Execute or Execute with arguments if you want to add -video=opengl for OpenGL rendering.
